Adding A Model

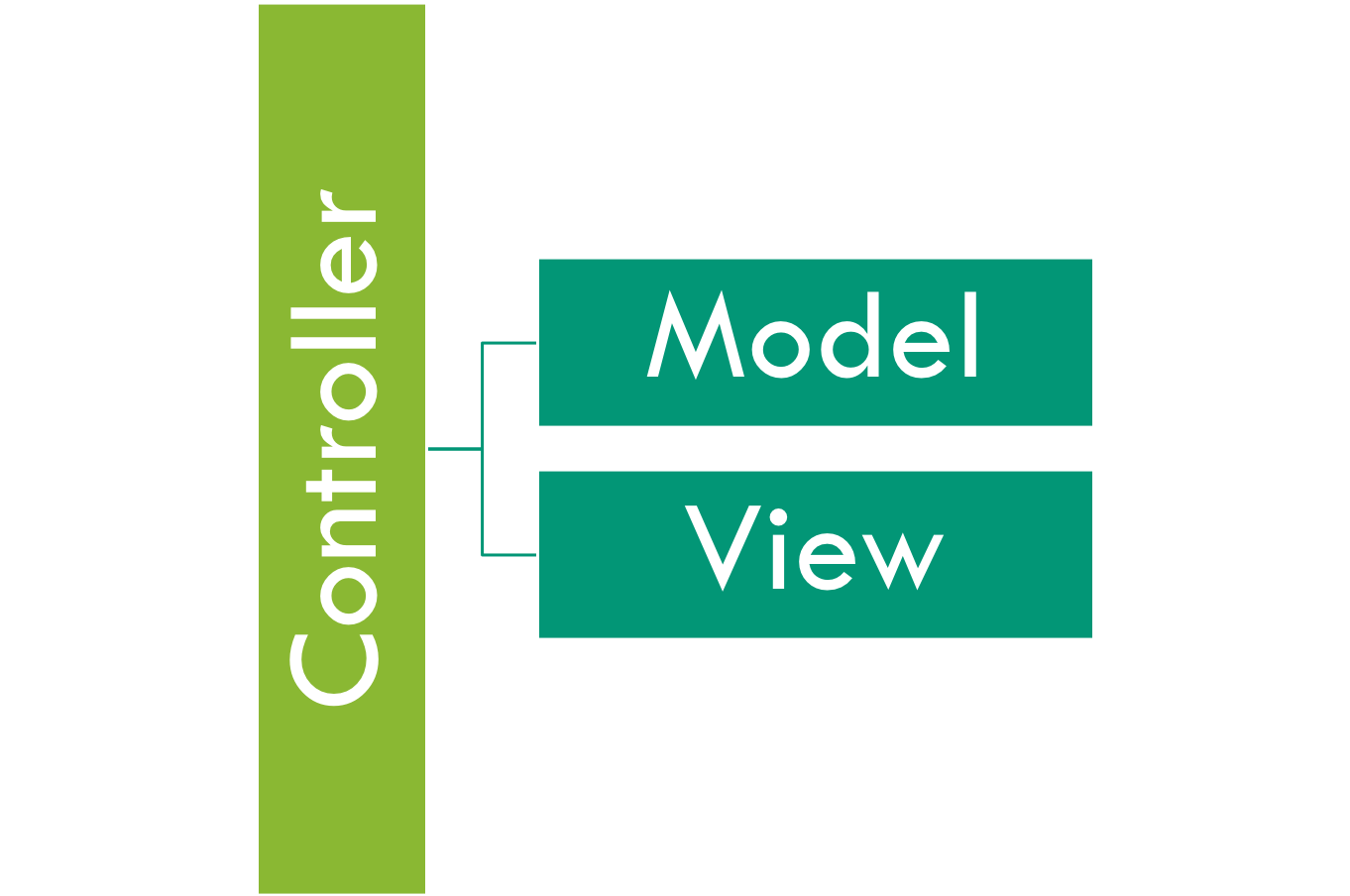

Let's complete our saga into MVC by developing the M, which stands for model. This layer is all your business logic, queries, external dependencies, etc. of your application, which represents the problem to solve or the domain to solve.
WireBox
This layer is controlled by WireBox, the dependency injection framework within ColdBox, which will give you the flexibility of wiring your objects and persisting them for you.
Creating A Service Model
Let's create a simple contact listing, so open up CommandBox and issue the following command:
1
coldbox create model name="ContactService" methods="getAll" persistence="singleton"
Copied!
This will create a models/ContactService.cfc with a getAll() method and a companion unit test at tests/specs/unit/ContactServiceTest.cfc. Let's open the model object:
1
/**
2
 * I am a new Model Object
3
 */
4
component singleton accessors="true"{
5
​
6
	// Properties
7

8
​
9
	/**
10
	 * Constructor
11
	 */
12
	ContactService function init(){
13
​
14
		return this;
15
	}
16
​
17
	/**
18
	 * getAll
19
	 */
20
	function getAll(){
21
​
22
	}
23
​
24
​
25
}
Copied!
Notice the singleton annotation on the component tag. This tells WireBox that this service should be cached for the entire application life-span. If you remove the annotation, then the service will become a transient object, which means that it will be re-created every time it is requested.
Add Some Data
Let's mock an array of contacts so we can display them later. We can move this to a SQL call later.
1
/**
2
 * I am a new Model Object
3
 */
4
component singleton accessors="true"{
5
​
6
	// Properties
7
	property name="data" type="array";
8
​
9
	/**
10
	 * Constructor
11
	 */
12
	ContactService function init(){
13
		variables.data = [
14
            { "id"=1, "name"="coldbox" },
15
            { "id"=2, "name"="superman" },
16
            { "id"=3, "name"="batman" }
17
        ];
18
		return this;
19
	}
20
​
21
	/**
22
	 * getAll
23
	 */
24
	function getAll(){
25
		return variables.data;
26
	}
27
​
28
​
29
}
Copied!
We also have created a project to mock any type of data: MockDataCFC. Just use CommandBox to install it: install mockdatacfc
You can then leverage it to mock your contacts or any simple/complex data requirement.
Wiring Up The Model To a Handler
We have now created our model so let's tell our event handler about it. Let's create a new handler using CommandBox:
1
coldbox create handler name="contacts" actions="index"
Copied!
This will create the handler/contacts.cfc handler with an index() action, the views/contacts/index.cfm view and the accompanying integration test tests/specs/integration/contactsTest.cfc.
Let's open the handler and add a new ColdFusion property that will have a reference to our model object.
1
component{
2
​
3
    property name="contactService" inject="ContactService";
4
​
5
    any function index( event, rc, prc ){
6
        event.setView( "contacts/index" );
7
    }
8
}
Copied!
Please note that inject annotation on the property definition. This tells WireBox what model to inject into the handler's variablesscope.
By convention it looks in the models folder for the value, which in our case is ContactService. Now let's call it and place some data in the private request collection prc so our views can use it.
1
any function index( event, rc, prc ){
2
    prc.aContacts = contactService.getAll();
3
    event.setView( "contacts/index" );
4
}
Copied!
Presenting The Data
Now that we have put the array of contacts into the prc struct as aContacts, let's display it to the screen using ColdBox's HTML Helper.
The ColdBox HTML Helper is a companion class that exists in all layouts and views that allows you to generate semantic HTML5 without the needed verbosity of nesting, or binding to ORM/Business objects.
Please check out the API Docs to discover the HTML Helper: http://apidocs.ortussolutions.com/coldbox/current/index.html?coldbox/system/modules/HTMLHelper/models/HTMLHelper.html​
Open the contacts/index.cfm and add the following to the view:
1
<cfoutput>
2
<h1>My Contacts</h1>
3
​
4
#html.table( data=prc.aContacts, class="table table-striped" )#
5
</cfoutput>
Copied!
Note: If your models are singletons, they will persist for the life-span of your ColdFusion application. To see code changes for singletons, you have to reinit the framework by using the ?fwreinit={password} Url action or via CommandBox using coldbox reinit. Please check out the API Docs to discover CommandBox: [https://apidocs.ortussolutions.com/commandbox/5.2.0/index.html]
That's it! Execute the event: http://localhost:{port}/contacts/index and view the nice table of contacts being presented to you.
Congratulations, you have made a complete MVC circle!
Tip You can find much more information about models and dependency injection in our full docs​
